Scaffolding Accessories

ST 601 Jack Base	ST 602 Shoring Head	ST 205 Walking Board	ST 514 Stair

Dia=32 Height=606	Dia=32 Height=606	Length=1829 Width=500	Width=450 Height=1725

ST 701 Joint Pin	ST 603 Caster	ST 604 Base Plate	ST 901 Hand Rail Pole

Dia=36 Lenght=225	Dia=200 Shaft L.=98	Dia=36 Height=80	Dia=36 Height=1219

ST 902 Hand Rail	ST 501 Wall Connector	ST 801 Arm Lock	ST 201,202,203 Walking Frame

Code Length (A) ST902 1829 ST902A 1219	Length=380-480	Length=506

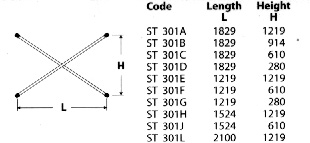

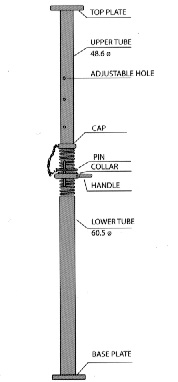

ST 301 Cross Brace	Steel Props

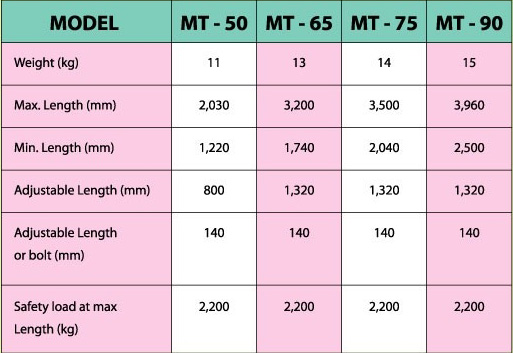

Model of Steel Prop

Safety load is obtained subject to the props installed right vertically within 2 metres apart and at the minimum height. Required number of props=Total floor weight/ safety load
Important Note: The above results are attainable with scaffolding frame fabricated in compliance with MS 1462 : 1999
